How to Maintain a Honda GX390 Engine: 5 Essential Maintenance Tasks

To maintain a Honda GX390 engine, focus on five routine tasks: change the engine oil, check and replace the spark plug, clean and replace the air filter element, clean the spark arrester, and clean the sediment cup. Following the correct maintenance schedule helps keep the engine running reliably and can reduce the risk of avoidable downtime.

For commercial equipment, Honda recommends tracking operating hours and servicing the engine based on whichever maintenance interval comes first. Honda also recommends more frequent air filter service in dusty conditions and more frequent oil changes under heavy loads or high temperatures.

Table of Contents

• 1. Change the Engine Oil
• 2. Check and Replace the Spark Plug
• 3. Clean and Replace the Air Filter Element
• 4. Clean the Spark Arrester
• 5. Clean the Sediment Cup
• Honda GX390 Maintenance Checklist
• Get Honda GX390 Parts in DFW
• When to Get Professional Honda GX390 Service

1. Change the Engine Oil

Engine oil lubricates the internal components of the Honda GX390 and helps control friction and heat. Regular oil changes are one of the most important maintenance tasks for keeping the engine operating properly.

When should you change the engine oil?

• Check the oil level: Before each use
• First oil change: First month or 20 hours
• Regular oil change: Every 6 months or 100 hours
• Heavy load or high-temperature operation: More frequent oil changes may be necessary

Honda specifically notes that oil should be changed more frequently when an engine operates under heavy loads or high outside temperatures.

How to change the Honda GX390 engine oil

1. Run the engine for a few minutes, then shut it off and allow it to cool enough to handle safely.
2. Position an appropriate container underneath the oil drain area.
3. Remove the oil filler cap/dipstrick
4. Remove the oil drain plug and allow the old oil to drain completely.
5. Reinstall and securely tighten the drain plug.
6. Add the recommended engine oil to the appropriate level.
7. Check the oil level with the engine positioned level (when oil begins to run out into the oil filler neck).
8. Wipe away any spilled oil & tighten the oil filler cap before operating the engine.

Tip: If the GX390 is powering construction equipment that operates for long hours, keep track of operating hours so oil changes are not missed.

---

2. Check and Replace the Spark Plug

The spark plug provides the ignition needed to start and operate the GX390. A dirty, damaged, or worn spark plug can contribute to starting and engine performance problems.

When should you service the spark plug?

• Check and clean: Every 6 months or 100 hours
• Replace: Every year or 300 hours
• Replace sooner if the spark plug is damaged, badly fouled, or worn.

Honda’s GX390 documentation lists spark plug inspection and adjustment at the 100-hour or 6-month interval and replacement at 300 hours or one year.

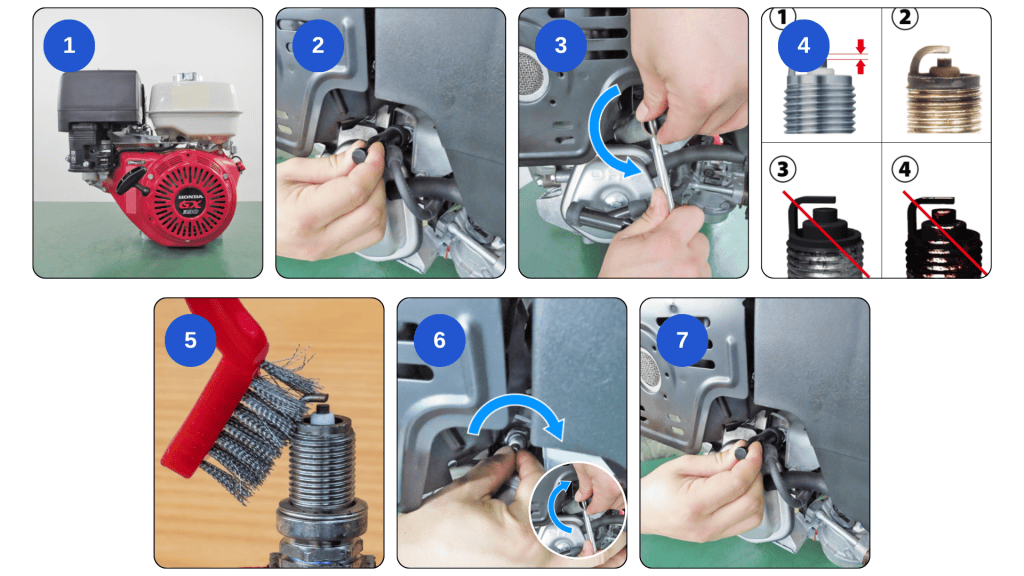

How to check and replace the spark plug

1. Turn the engine off and allow it to cool.
2. Disconnect the spark plug cap.
3. Remove the spark plug using the appropriate spark plug wrench and remove any dirt from around the spark plug area.
4. Inspect the plug for fouling, damage, worn electrodes, or a damaged sealing washer [1] the gap should be 0.7 – 0.8 mm [2] normal condition [3] dry / carbon fouled [4] wet fouled.
5. Clean or adjust the plug if it is still serviceable. If not, replace it with new spark plug.
6. Install the spark plug and tighten it properly.
7. Reconnect the spark plug cap.

For a GX390, always verify the correct spark plug specification for your particular engine version before installation.

---

3. Clean and Replace the Air Filter Element

The air filter prevents dirt and debris from entering the engine. This is particularly important for Honda GX390 engines used on construction equipment because dusty jobsites can quickly contaminate the air filter.

When should you service the air filter?

• Check: Before each use
• Clean: Every 3 months or 50 hours
• Replace the paper element: Every year or 300 hours
• Service more frequently: When operating in dusty conditions

Honda recommends more frequent air cleaner service when the engine is used in dusty environments.

How to clean the air filter element

1. Turn off the engine and allow it to cool.
2. Remove the air cleaner cover.
3. Remove the air filter element from the engine and remove the paper filter from the housing.
4. Inspect the element for dirt, damage, or excessive contamination.
5. Clean the element according to its filter type and the applicable Honda instructions.
   1. Paper filter cleaning : tap the filter element several times on hard surface to remove dirt and do not brush it, or use compressed air to clean it (max. 207 kPa / 30 psi).
   2. Foam filter cleaning : clean the foam filter in warm soapy water then allow it to dry (do not use gasoline to clean the foam filter)or dip it in clean engine oil and squeeze with clean rag/towel (do not twist it).
6. Wipe dirt from the inside of the air cleaner case dan cover using clean moist rag.
7. Replace the paper element if it is damaged, excessively dirty, or due for replacement.
8. Reinstall the air filter and air cleaner cover securely.

Important: Do not continue using a damaged or heavily contaminated filter. A clean air filter is especially important for equipment operating in dusty North Texas construction environments.

---

4. Clean the Spark Arrester

The spark arrester helps prevent sparks from exiting through the engine’s exhaust system. Carbon buildup can restrict exhaust flow, so it should be included in routine GX390 maintenance when the engine is equipped with a spark arrester.

When should you clean the spark arrester?

• Clean: Every 6 months or 100 hours
• Service it sooner if operating conditions result in significant carbon buildup.

Honda’s GX-series maintenance schedule lists spark arrester cleaning at the 100-hour or 6-month interval.

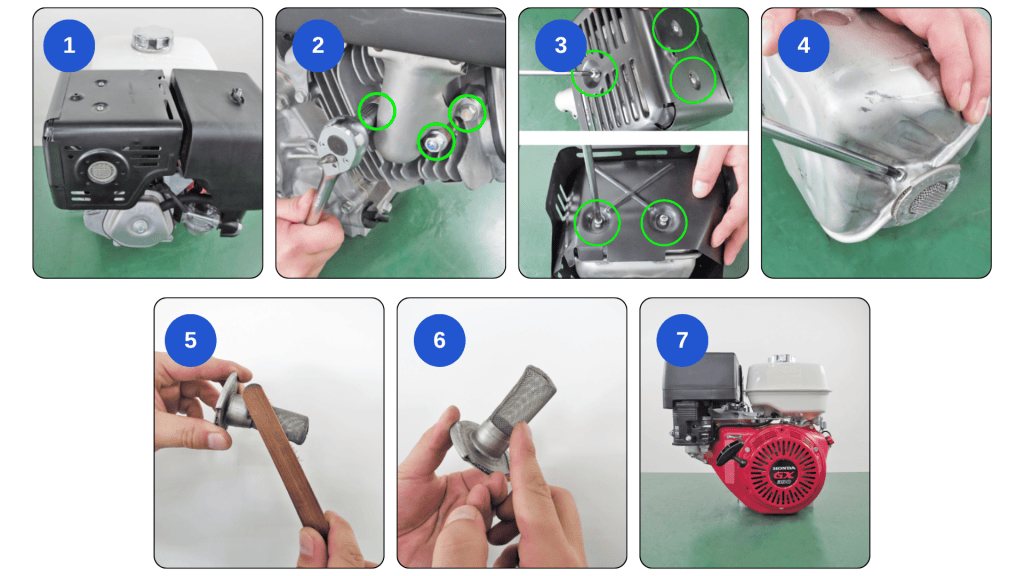

How to clean the spark arrester

1. Turn the engine off and allow the muffler and exhaust system to cool completely.
2. Remove outside bolts, nuts & muffler from the cylinder.
3. Remove the screws from the muffler protector and remove the muffler protector
4. Remove the spark arrester from the muffler (use 4mm screwdriver).
5. Inspect the screen for carbon deposits or damage and carefully brush away carbon deposits.
6. The spark arrester must be free of breaks and holes. Replace it with new one in case it is damaged.
7. Reinstall the spark arrester and all removed hardware securely.

Honda’s service guidance similarly emphasizes allowing the exhaust system to cool and carefully brushing carbon deposits without damaging the screen.

---

5. Clean the Sediment Cup

The sediment cup helps catch contaminants and water in the fuel system before they can continue through the fuel system. Keeping it clean is particularly useful for engines that see frequent jobsite use.

When should you clean the sediment cup?

• Clean: Every 6 months or 100 hours
• Clean it sooner if you suspect contaminated fuel or fuel-system problems.

Honda’s GX390 maintenance schedule specifies sediment cup cleaning every 6 months or 100 hours.

How to clean the sediment cup

1. Turn the engine off and allow it to cool. Move the fuel valve to the OFF position.
2. Remove the sediment cup, O-ring and fuel filter screen.
3. Carefully inspect the cup and screen for dirt or contamination. Then clean the sediment cup with non-flammable solvent.
4. Allow the components to dry thoroughly.
5. Check the O-ring for damage and replace it if necessary.
6. Reinstall the O-ring, filter screen, and sediment cup.
7. Tighten the sediment cup securely.
8. Return the fuel valve to the appropriate position and check for leaks.

Fuel is highly flammable, so perform fuel-system maintenance away from ignition sources and handle fuel carefully.

---

Honda GX390 Maintenance Checklist

For equipment owners, contractors, and rental fleets, this simple checklist can make routine maintenance easier to track:

Before Each Use

• Check engine oil level
• Check air filter condition

First Month or 20 Hours

• Change engine oil

Every 3 Months or 50 Hours

• Clean air filter element

Every 6 Months or 100 Hours

• Change engine oil
• Clean air filter as needed
• Check and clean spark plug
• Clean spark arrester
• Clean sediment cup

Every Year or 300 Hours

• Replace paper air filter element
• Replace spark plug

Always follow the maintenance requirements for your specific GX390 engine type and operating conditions. Honda provides GX390 owner manuals by engine serial-number range, so checking the applicable manual is important when specifications differ between versions.

---

Get Honda GX390 Parts in DFW

Routine maintenance is easier when you have the necessary parts ready before your equipment goes down.

TexPro Equipment’s Honda GX390 Engine Parts Kit is included in its current equipment parts and service kit sale. The sale page also lists Honda engine service kits and other construction equipment maintenance parts, with promotional pricing available for qualifying products.

For contractors, rental companies, landscapers, and equipment owners in Dallas-Fort Worth and North Texas, having commonly needed maintenance parts available can help reduce unnecessary equipment downtime.

Shop the Honda GX390 Parts Kit

---

When to Get Professional Honda GX390 Service

Routine maintenance can handle many basic GX390 service tasks, but some engine problems require proper diagnostics, specialized tools, or professional repair.

TexPro Equipment provides Honda engine service, repair, parts, diagnostics, and warranty service in the Dallas-Fort Worth area. Its Honda service team works with common Honda engines including the GX390, GX390UT2, GX340, GX160, and GX690, along with Honda-powered generators, pumps, compactors, concrete saws, and other equipment.

If your GX390 has a persistent starting problem, poor performance, unusual noise, fuel-system issue, or another problem that routine maintenance does not resolve, professional service can help identify the underlying issue.

Get Honda GX390 Service in DFW

TexPro Equipment is located in Richland Hills and serves customers throughout the Dallas-Fort Worth Metroplex and North Texas.
